BEST-IN-CLASS SULFUR RECOVERY MODELING CAPABILITIES

Sulfur Recovery Engineering (SRE) has partnered with Virtual Materials Group (VMG), allowing SRE to use the powerful VMG Sulfur Plant simulation software in-field (VMGSim). Using over 20 years of accumulated SRE sulfur unit data, our team is able to accurately model any given SRU. In conjunction with our field results, the models provide important process values such as Reaction Furnace adiabatic temperature, Converter bed dewpoints, and catalyst activity providing the most up-to-date and accurate performance correlations all within the most flexible SRU modeling tool.

Our field testing engineers use VMGSim to model each plant that we visit and have found it to be a powerful tool for on-site unit optimization. Our engineering reports also include a ‘tuned’ model of the client’s SRU such that they themselves can open and manipulate the variables to track operational trends in their plants. A great tool!

TUNED SRU MODELING

Do you want access to a predictive simulation model of your SRU? What about a model that is tuned to match your SRU’s field performance? See more

DYNAMIC MODELING

How can I get better estimates of SRU performance and identify pinch-points when considering different operating scenarios, such as turndown, and different equipment- either by upgrade or retrofit? Here, a Dynamic Model would be of great benefit. See more

SRU DESIGN CONSULTATION

SRE’s extensive SRU knowledge base makes us a trusted source in terms of identifying your processing requirements and restrictions. SRE has you covered if you require feedback, suggestions, or a formal design critique. Furthermore, the VMGSim Sulfur Package generates high-fidelity SRU models that are best-in-class. See more

SIMULATION TRAINING

Are you looking to learn how to use VMGSim in order to model Amine, Sulfur Recovery and Tail Gas Cleanup Units yourself? SRE offers comprehensive simulation training programs aimed at teaching our clients how to use VMGSim for their needs. See more

PROCESS SIMULATION SOFTWARE

BEST-IN-CLASS SULFUR RECOVERY MODELING CAPABILITIES

Sulfur Recovery Engineering (SRE) has partnered with Virtual Materials Group (VMG), allowing SRE to use the powerful VMG Sulfur Plant simulation software in-field (VMGSim). Using over 20 years of accumulated SRE sulfur unit data, our team is able to accurately model any given SRU. In conjunction with our field results, the models provide important process values such as Reaction Furnace adiabatic temperature, Converter bed dewpoints, and catalyst activity providing the most up-to-date and accurate performance correlations all within the most flexible SRU modeling tool.

Our field testing engineers use VMGSim to model each plant that we visit and have found it to be a powerful tool for on-site unit optimization. Our engineering reports also include a ‘tuned’ model of the client’s SRU such that they themselves can open and manipulate the variables to track operational trends in their plants. A great tool!

Highlights:

  • SRE-VMG Correlations available for the Claus Reaction Furnace leading to realistic predictions of outlet compositions of sulfur vapor, COS, CS2, CO, and H2.
  • Supported Plant Configurations:
    • Gas Plant or Refinery;
    • High-efficiency or old-style burners;
    • Straight-through or front-side split;
    • O xygen enriched or natural gas co-fired.
  • SRE-VMG COS and CS2 hydrolysis correlations are now available for regular Alumina, promoted Titania, and full Titania catalyst.
  • New option to estimate heat loss in the Claus Reaction Furnace.

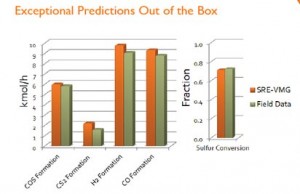

EXCEPTIONAL PREDICTIONS OUT OF THE BOX



About VMGSIM

VMGSim is used around the world to model existing processes and to design new facilities from the ground up. At the heart of VMGSim is VMGThermo, our thermophysical property calculator capable of accurately predicting the behaviour of complex fluid mixtures. With over 20,000 chemicals, more than 80 thermodynamic property packages, and hundreds of unit operations, VMGSim provides unparalleled model sophistication and precision. VMGSim performs all of the routine calculations to free up your time to tackle processing challenges creatively. The result: you’ll find innovative ways to maximize the value of the end product, while reducing operating costs and wasted material.

Moreover, VMGSim behaves like your own engineering advisor – propagating information, anticipating your questions, and suggesting effective methods for model development and exploration. Better still, VMGSim requires only the smallest amount of information necessary to build your model based on rigorous thermodynamic relationships.

Real-time process calculations- VMGSim instantly calculates process changes, intelligently propagates information, and continually monitors degrees of freedom when you modify any unit operation parameter or process condition. This allows you to try many different equipment configurations within your virtual plant and see the effects of changes to the system instantaneously and inexpensively.
